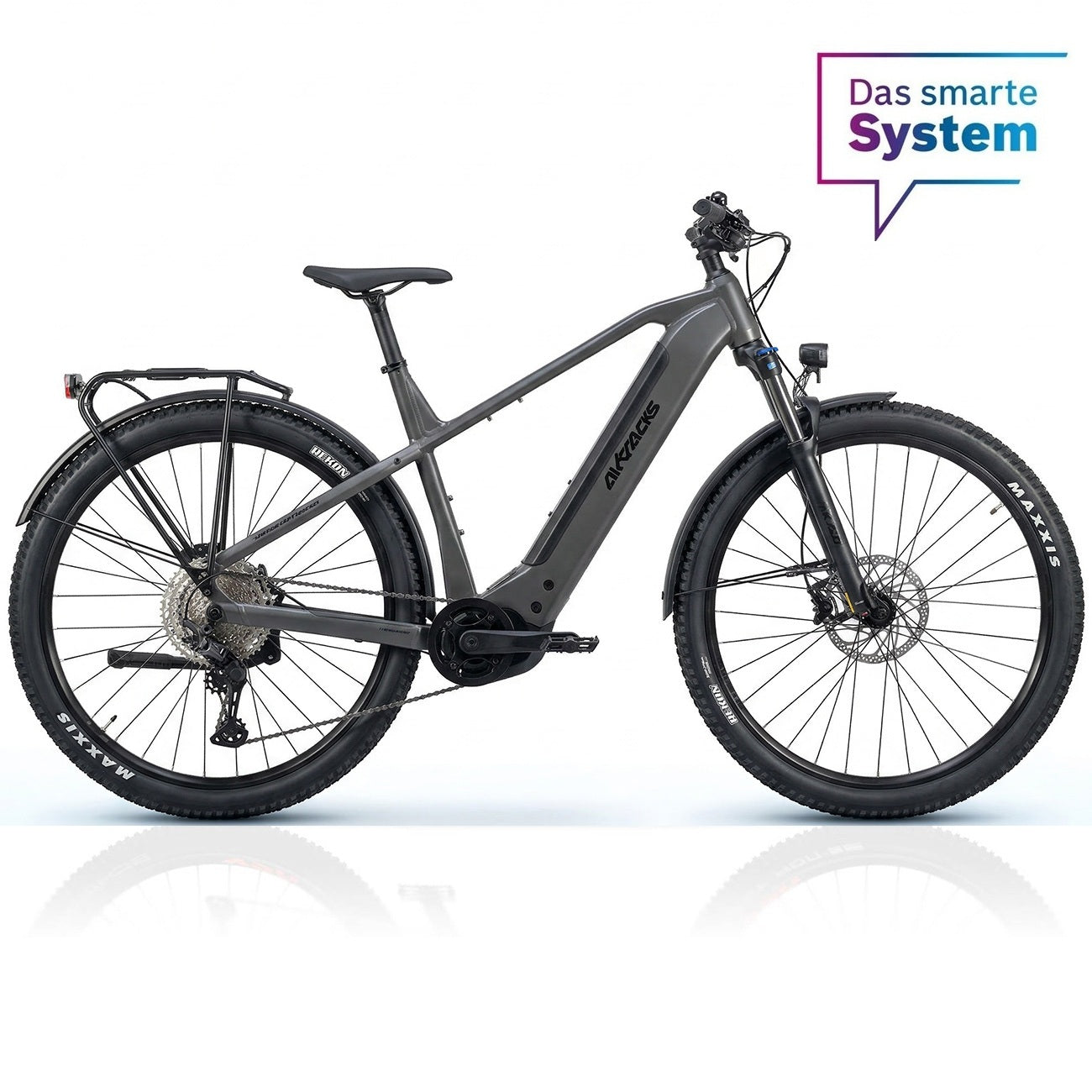

29" Men's E-SUV MTB STREAMER CX12 BOSCH PERFORMANCE LINE CX (GEN 5) Smart System POWERTUBE 800 Wh 12 x GANG SHIMANO XT RD-M8100 SGS Black

29" Men's E-SUV MTB STREAMER CX12 BOSCH Performance Line CX | Smart System | POWERTUBE 800 Wh | 12 x Speed ​​SHIMANO XT RD-M8100 SGS Black

---

This high-performance 29" e-SUV mountain bike is ideal for demanding tours and long off-road adventures. The STREAMER CX12 combines modern e-bike technology with a stable and comfortable design, offering a dynamic and safe riding experience on a wide variety of terrain – from daily commutes to extended weekend tours.

HIGH-PERFORMANCE BOSCH PERFORMANCE LINE CX MOTOR

The 5th generation Bosch Performance Line CX motor with Smart System delivers up to 100 Nm of torque and provides powerful support up to 25 km/h . This allows the e-MTB to effortlessly master even steep climbs and challenging trails.

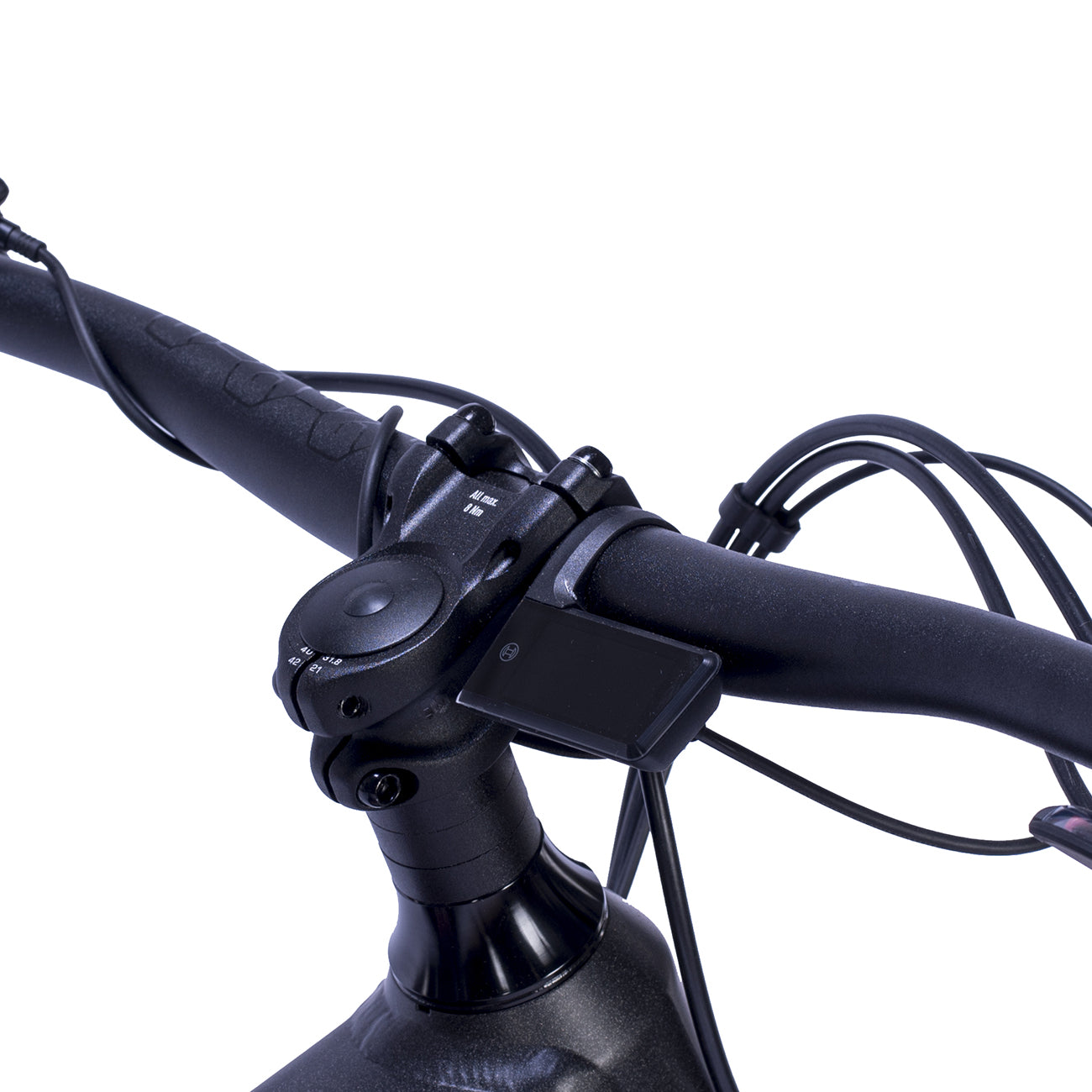

The integrated Bosch PowerTube 800 Wh battery enables ranges of up to 200 km and more , depending on riding style, terrain, and assistance level. The Bosch Purion 400 display keeps you informed of all important riding data at all times. Control is conveniently managed via the Bosch LED Remote and can also be connected to the Bosch eBike Flow app .

---

PRECISE SHIMANO DEORE XT 12-SPEED SHIFTING

The high-quality Shimano Deore XT 12-speed drivetrain with RD-M8100 SGS rear derailleur ensures fast and reliable gear changes. Combined with the wide-range 10-51T cassette, the right gear ratio is always available for steep climbs and fast descents.

---

SUNTOUR AIR SUSPENSION FORK AND POWERFUL DISC BRAKES

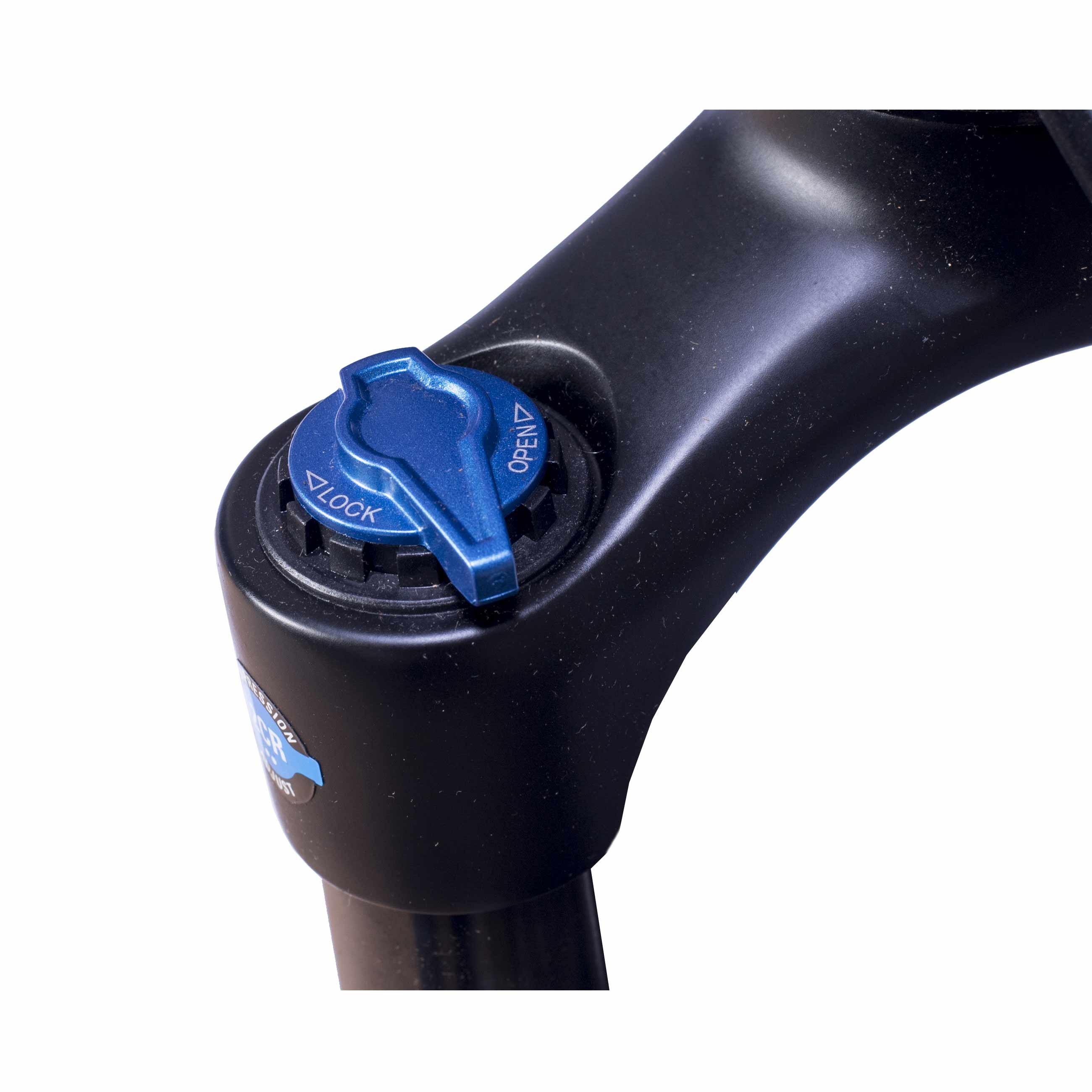

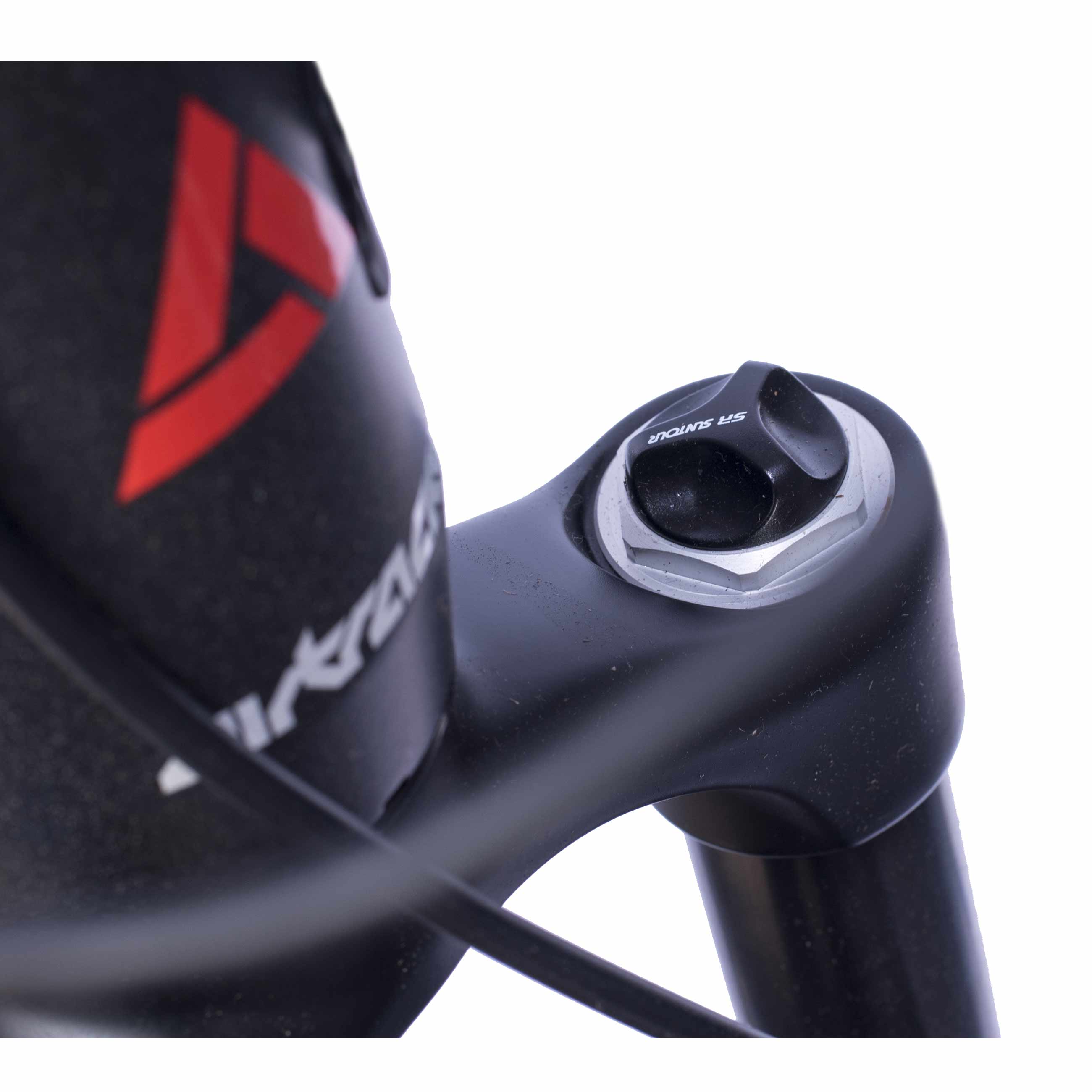

The SR Suntour XCR34X Air Boost suspension fork with 120 mm of travel offers comfort and control on uneven terrain and can be optimally adjusted to the rider's weight thanks to its air spring.

Maximum safety is ensured by the hydraulic Shimano 4-piston disc brakes with 203 mm brake disc at the front and 180 mm at the rear , which provide reliable deceleration even at high speeds.

---

STABLE 29" WHEELS FOR TRAIL AND TOURING

The large 29-inch wheels with Maxxis Rekon 2.40 tires offer excellent traction, stability and smooth running on trails, forest paths and gravel roads.

The stable Maverix aluminium frame is available in several sizes and, together with the 780 mm wide riser handlebar , ergonomic Herrmans grips and the comfortable Selle Royal saddle, ensures a comfortable and controlled seating position.

With a weight of approximately 27.8 kg and a permissible total weight of 140 kg, the STREAMER CX12 is a robust and versatile e-MTB for sporty riders.

---

Available men's bicycle frame sizes (frame heights):
M - 52cm | L – 56cm | XL - 60cm

This bicycle is delivered 98% assembled . Final assembly of the handlebars and pedals must be carried out by a qualified person.

SYSTEM	BOSCH CX GEN 5 MOTOR – PT 800 BATTERY – PURION 400 DISPLAY – LED REMOTE – 2A CHARGER
MOTOR	BOSCH PERFORMANCE LINE CX GEN 5 SMART SYSTEM (BDU384Y), 25 KM/H, MAX. 100 NM, 700 WATTS, 400% ASSISTANCE, 4 RIDING MODES + WALK ASSIST
BATTERY	BOSCH POWERTUBE SMART SYSTEM 800 WH / 22.2 AH, 36 V, LI-ION
DISPLAY	BOSCH DISPLAY PURION 400 SMART SYSTEM, SYSTEM CONTROLLER AND EBIKE FLOW APP

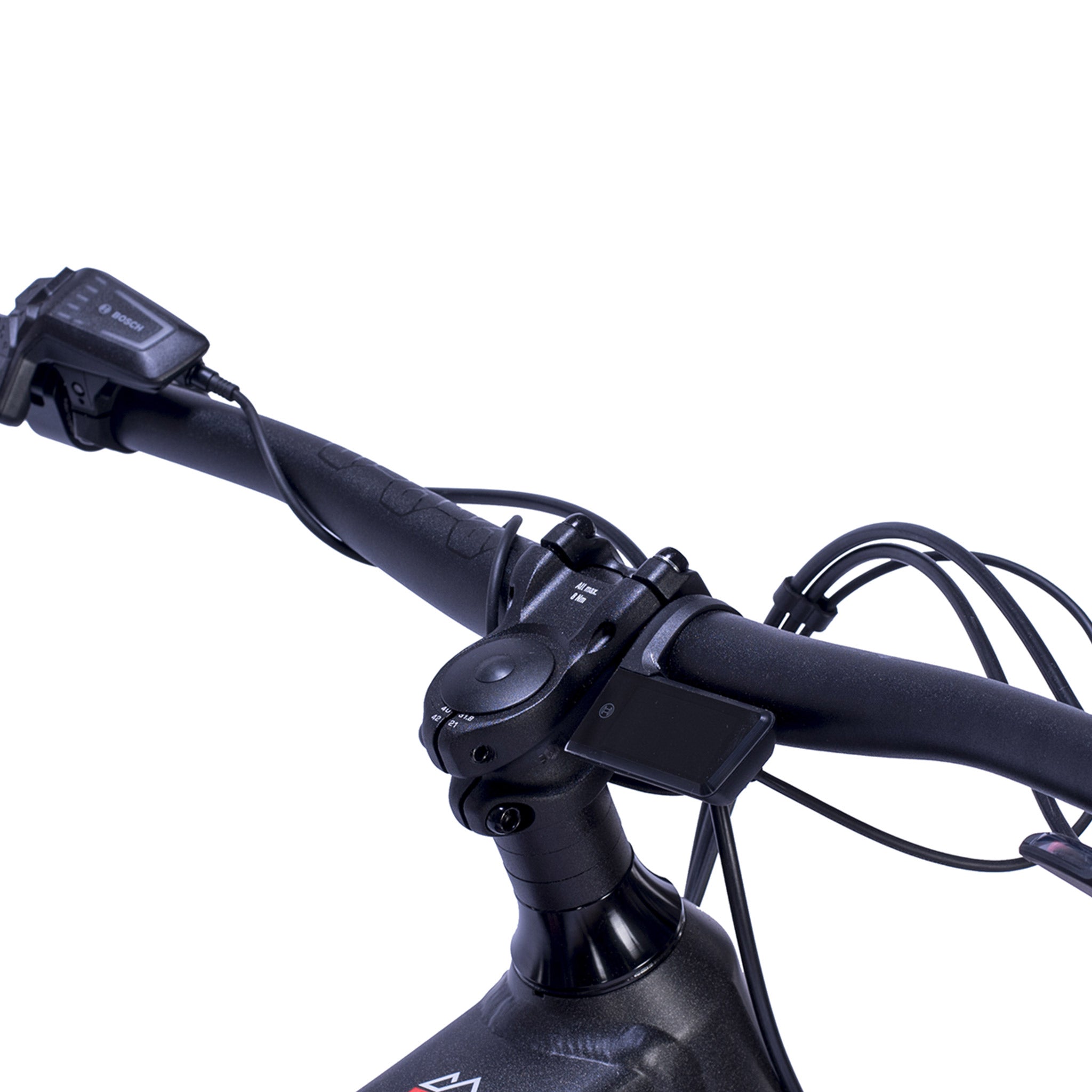

REMOTE	LED REMOTE WITH 5 BUTTONS AND ON/OFF SWITCH, 22.2 MM
FRAME	MAVERIX 29" MEN – 52 CM / 56 CM / 60 CM
FORK	SUNTOUR SF25-XCR34X-AIR-BOOST 2CR DS 15AH2-110 29" T: 120 MM
HEADSET	VP-J313AE (5.9 MM) 1 1/8 – 1.5 44–56 WITH TOP CAP M-53D
STEM	PMG LEVEL9 TEAM 40 MM, 31.8 MM
CRANK_ARM	FSA CRANK ARM CK220
CRANK	FSA GEN 4 BOLT ISIS CRMO
CHAINRING	FSA W0138 W1156 WB485
PEDALS	VPE-506
CHAIN	KMC E12S SPORT 1/2 × 11/128, 118 LINKS, 12-SPEED
REAR_DERAILLEUR	SHIMANO DEORE XT RD-M8100 SGS, 12-SPEED
SHIFTER	SHIMANO DEORE SL-M6100-R
CASSETTE	SHIMANO DEORE KCSM610012051, 10–51 TEETH
RIMS	X18 DISC WITH STAINLESS STEEL EYELETS
FRONT_HUB	SHIMANO AHBTC50015BB, 15 MM, 32 HOLES, CENTERLOCK
REAR_HUB	SHIMANO AFHTC500MSBB, 12 MM, 32 HOLES, CENTERLOCK
REAR_AXLE	LEVER WITH TOOL 6 MM / T30 / T25
SPOKES	BLACK SPOKES 32 / 14G
TIRES	MAXXIS REKON ETB00297200 OE1593V – 29 × 2.40
TUBES	SCHWALBE SV19L 54/75-584/622
RIM_TAPE	HERRMANS HPA+ 30 × 622 / 29
HANDLEBAR	PMG LEVEL9 RACE RISER 780 MM, 31.8 MM, RISE 15 MM, BACKSWEEP 9°
GRIPS	HERRMANS SHARK DD38BL/BR – 130/130 MM
ASSEMBLY	98% PRE-ASSEMBLED (IN THE BOX)
MANUAL	E-BIKE USER MANUAL DE / EN / FR / IT / NL / ES
SADDLE	SELLE ROYAL VIVO SPORT ERGO A062HR0008014 – 017.03.403
SEATPOST	VIPER 31.6 × 400 MM, BLACK (HUMPERT)
SEAT_CLAMP	PROMAX MX27, 35 MM

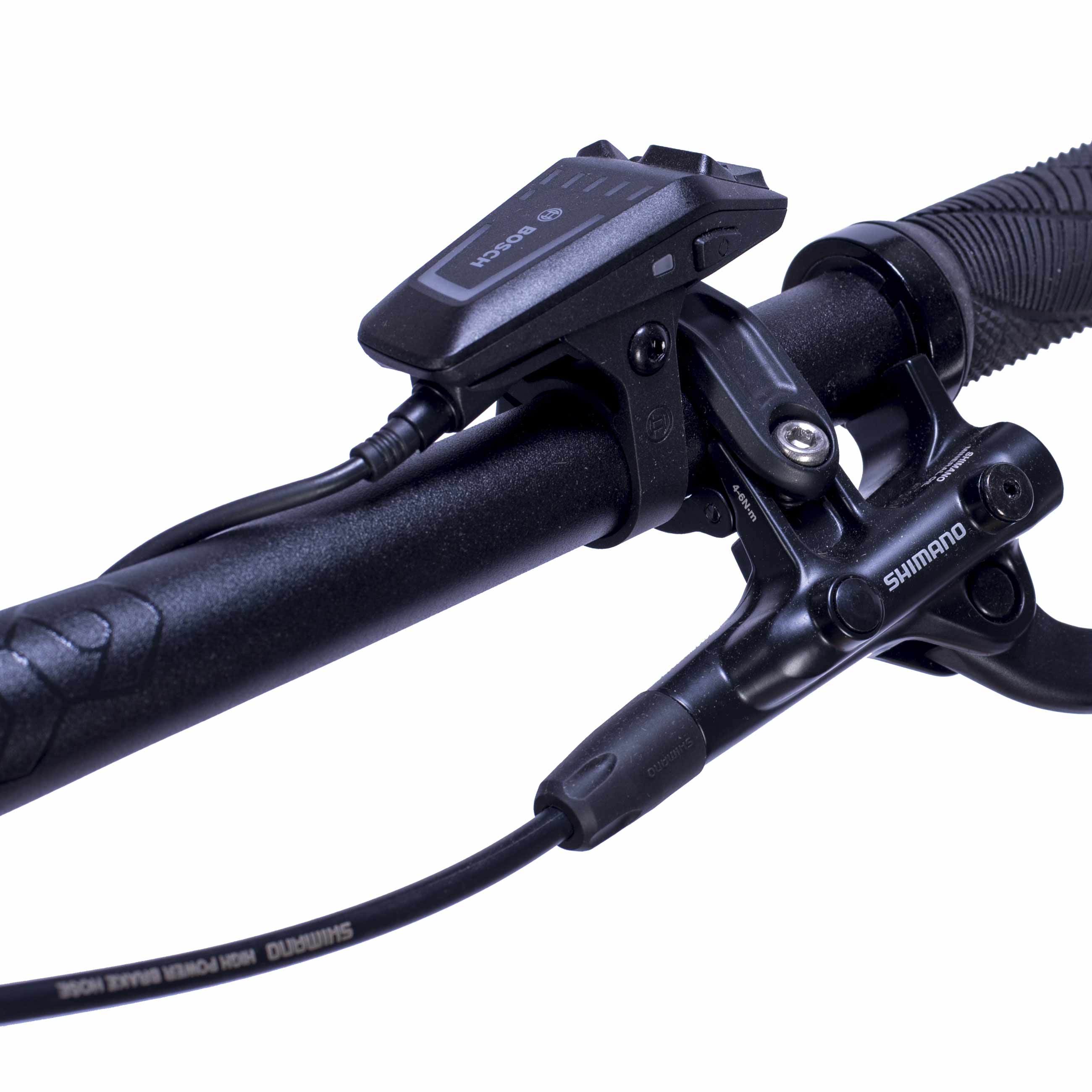

FRONT_BRAKE	SHIMANO AMT420, HYDRAULIC DISC BRAKE, 4-PISTON
REAR_BRAKE	SHIMANO AMT420, HYDRAULIC DISC BRAKE, 4-PISTON
FRONT_ROTOR	SHIMANO SM-RT30, 203 MM, CENTERLOCK
REAR_ROTOR	SHIMANO SM-RT30, 180 MM, CENTERLOCK
BRAKE_LEVERS	INCLUDED IN THE BRAKES
WEIGHT	27.8 KG
MAX_TOTAL_WEIGHT	140 KG

Frame size 52 cm	Height 165-175 cm
Frame size 56 cm	Height 175-185 cm
Frame size 60 cm	Height 185-195 cm
