28-inch LS WAVE E-BIKE V-TRON BOSCH ACTIVE LINE PLUS GEN3 POWERTUBE 500 Wh

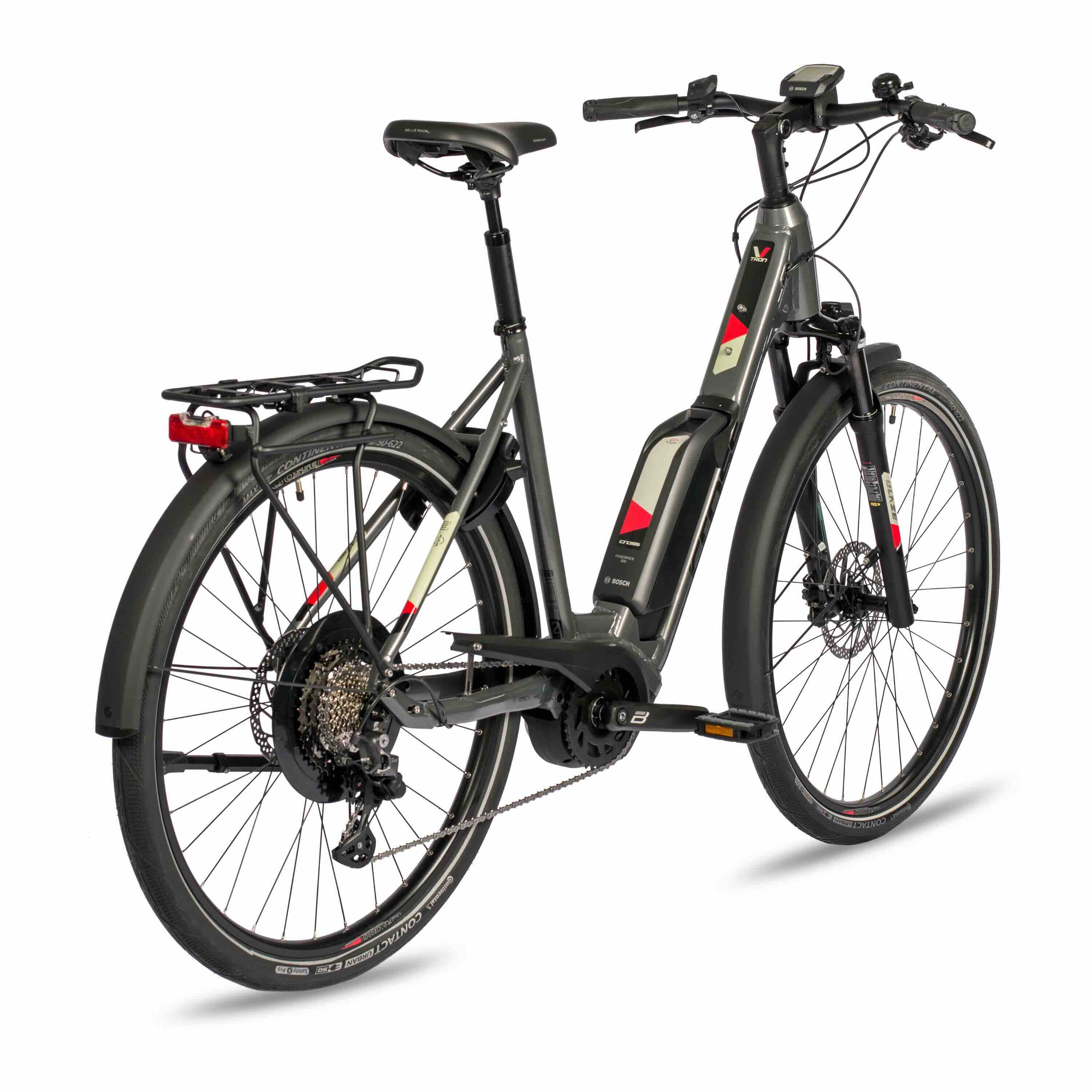

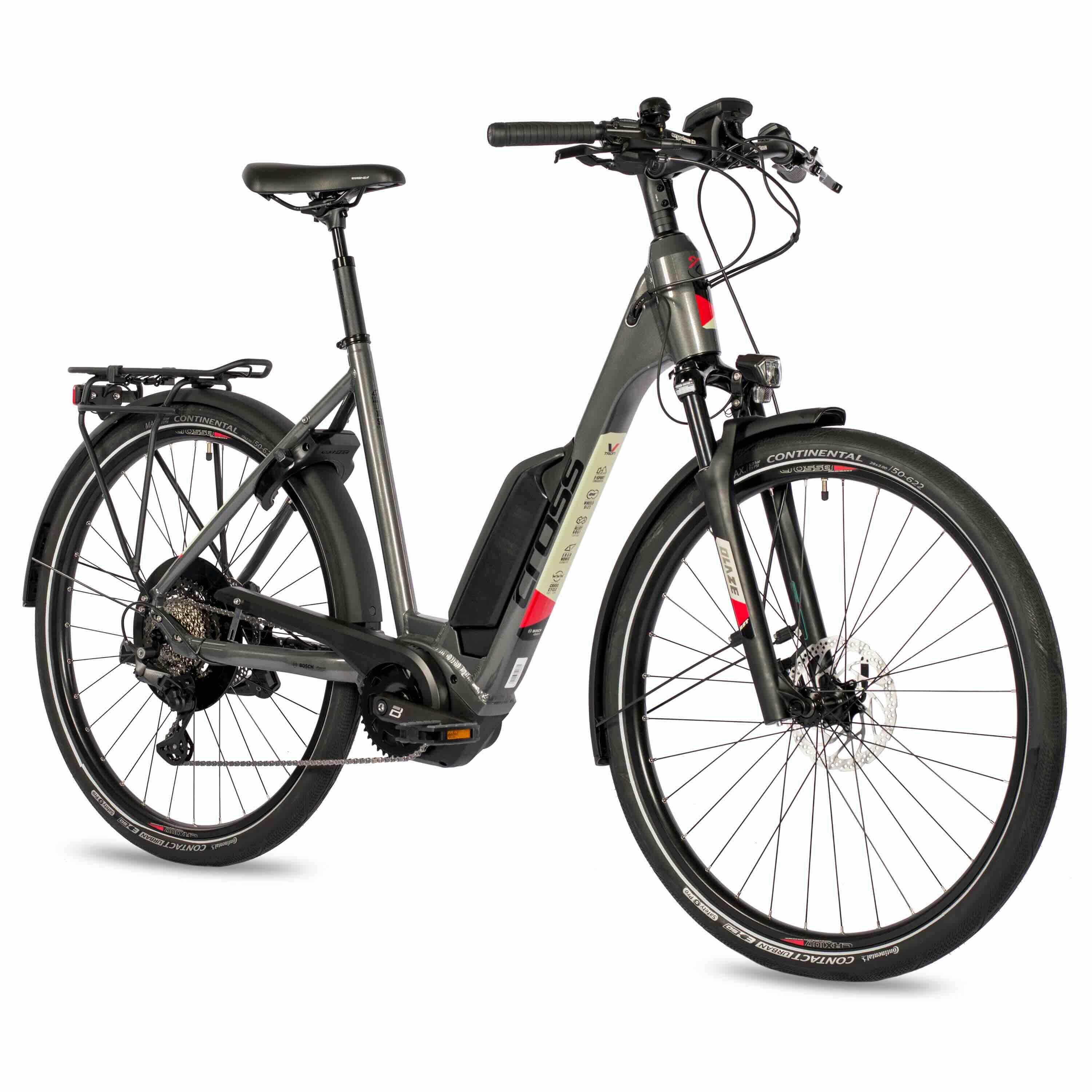

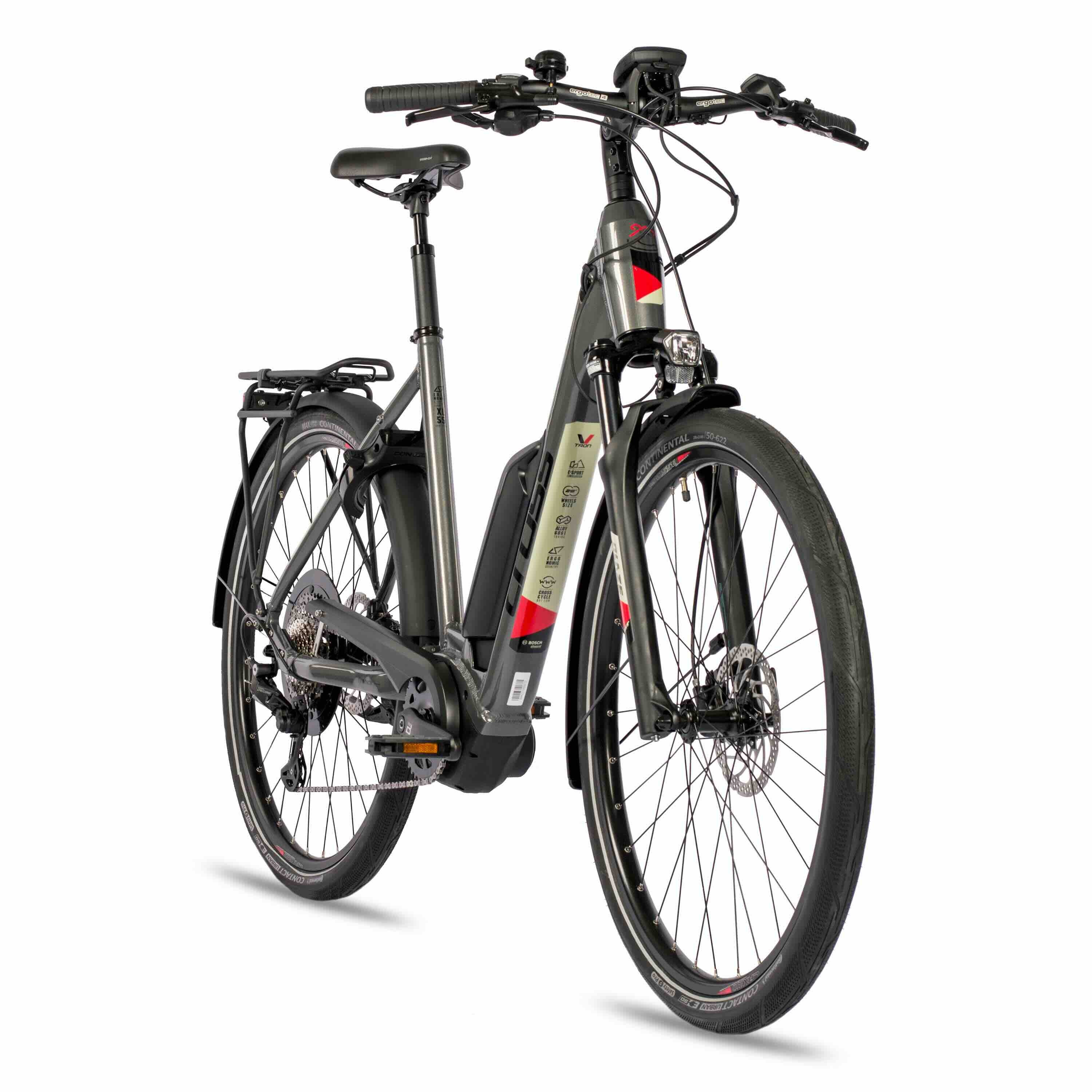

The 28-inch V-TRON RD low-step WAVE trekking e-bike is a high-quality choice for female cyclists who want to ride both in urban areas and on longer routes. Equipped with a powerful BOSCH ACTIVE PLUS LINE Gen3 motor and a reliable BOSCH POWER PACK 500Wh semi-integrated battery, this e-bike offers impressive performance and riding comfort.
The combination of a maximum torque of 65 Nm and the 10-speed SHIMANO DEORE drivetrain enables smooth and efficient riding, both on flat roads and in more challenging conditions. The RST BLAZE-ML-29 suspension fork with 80 mm of travel ensures a smooth ride, even on bumpy roads and terrain, by absorbing impacts and bumps.
With powerful SHIMANO BR-MT200 hydraulic disc brakes equipped with 180 mm rotors, the e-bike offers reliable braking performance and excellent control, even at higher speeds and in challenging riding conditions.
The SELLE ROYAL ESSENZA MODERATE PLUS saddle provides a comfortable seat, even on longer rides, and was specially designed for the female body to ensure maximum comfort. Overall, the 28-inch LUMINA women's trekking e-bike offers a perfect combination of performance, comfort, and functionality, making it an excellent choice for discerning female cyclists.
All Airtracks e-bikes with Bosch or Shimano motors are equipped with removable, lockable batteries.
These offer greater comfort and safety than permanently installed batteries, as they can easily be removed from the bicycle, charged separately, and protected against theft.
Available bicycle frame sizes (frame heights): M – 45 cm, L – 50 cm, XL – 55 cm.
This bicycle is delivered 98% assembled. Only the handlebars and pedals need to be secured. Final assembly to make it ready to ride must be carried out by a qualified person.

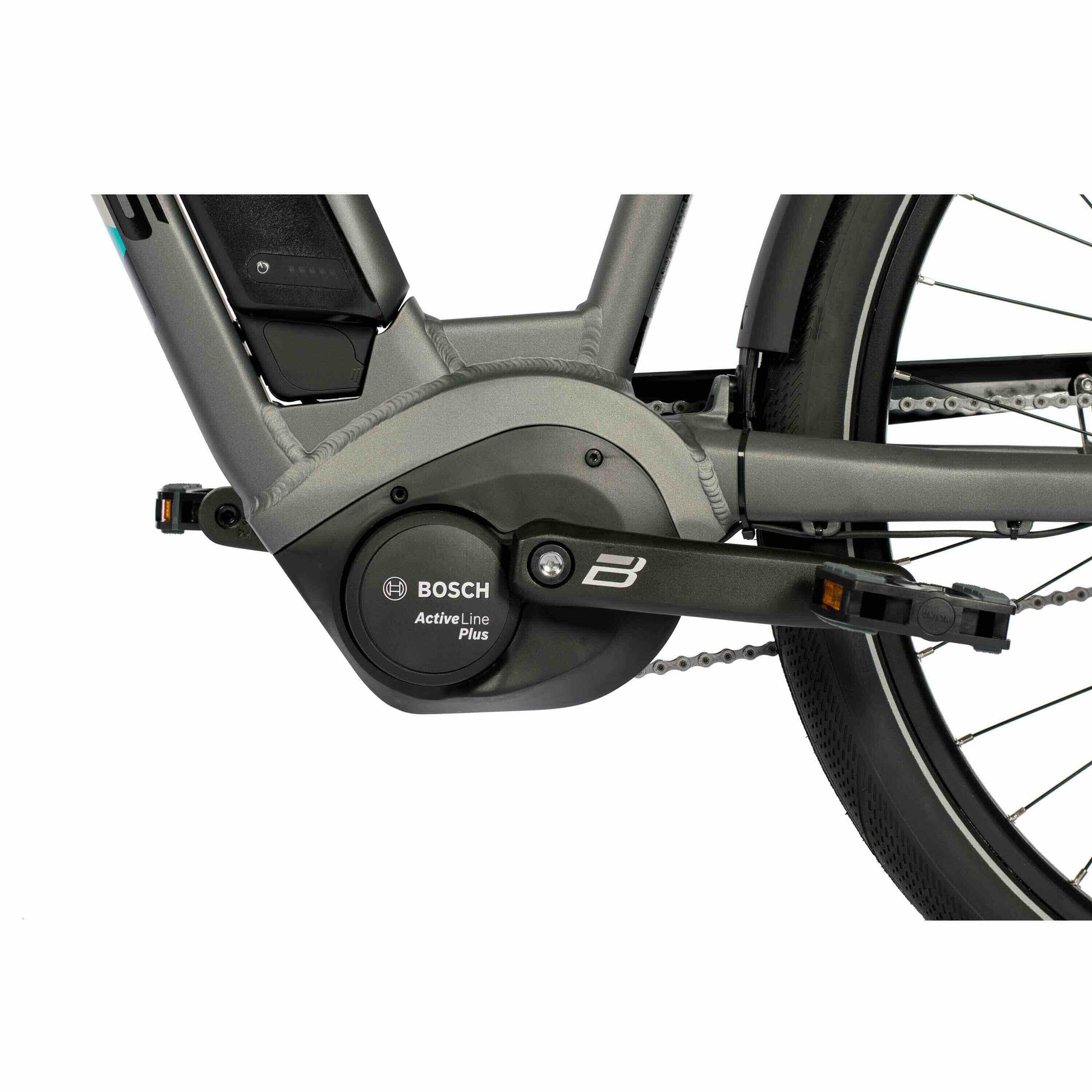

| MOTOR | BOSCH ACTIVE LINE PLUS GEN 3 BES 2 * 36V, 250W, MAXIMAL 65 NM DREHMOMENT |

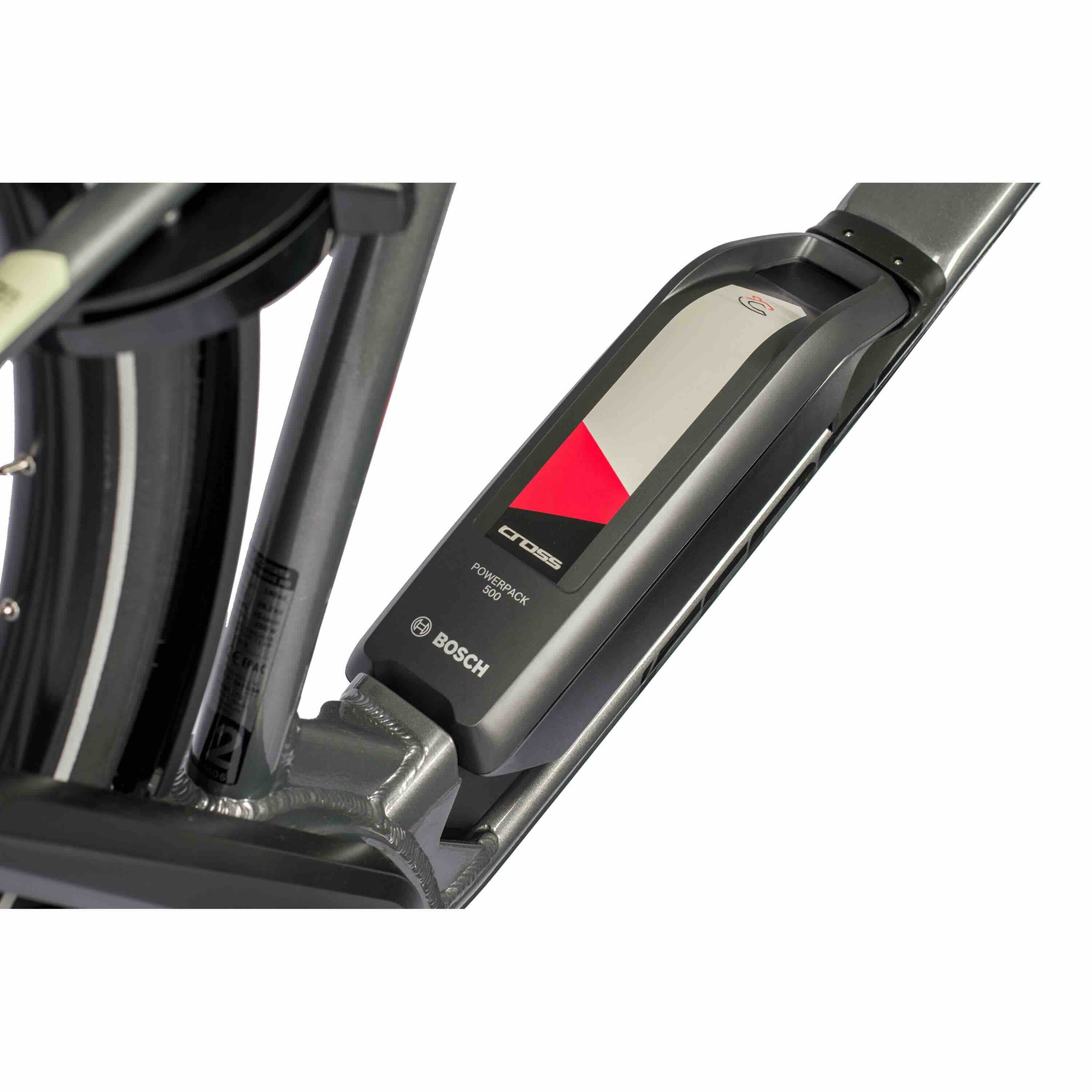

| AKKU | BOSCH POWER PACK 500WH, 36V, 13,4 AH, SEMI INTEGRIERT |

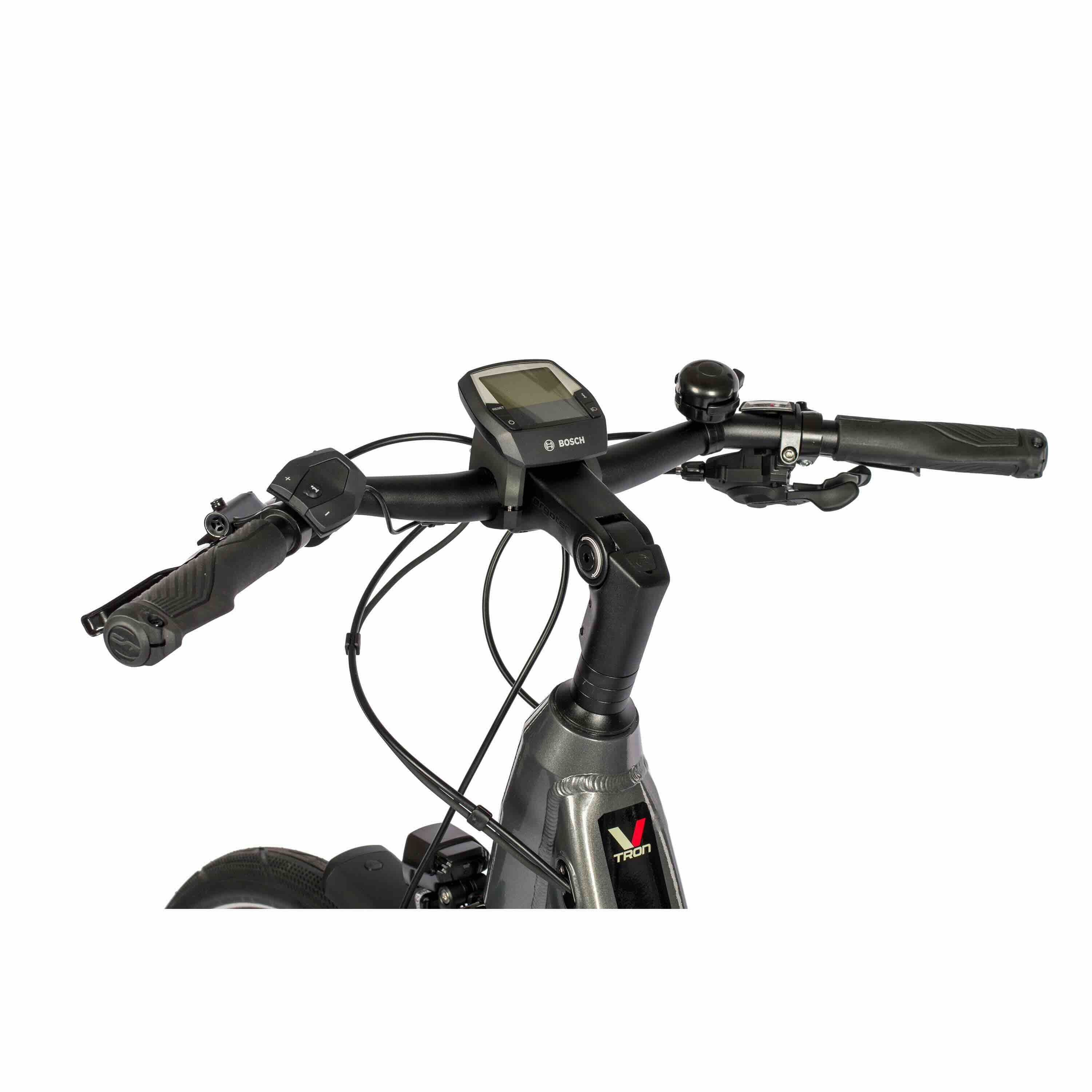

| BOARDCOMPUTER | BOSCH 'INTUVIA' 4-STUFEN, REMOTE CONTROL, SCHIEBEHILFE |
| LADEGERÄT | BOSCH COMPACT CHARGER 2A, (100-240V), EU-NETZKABEL |

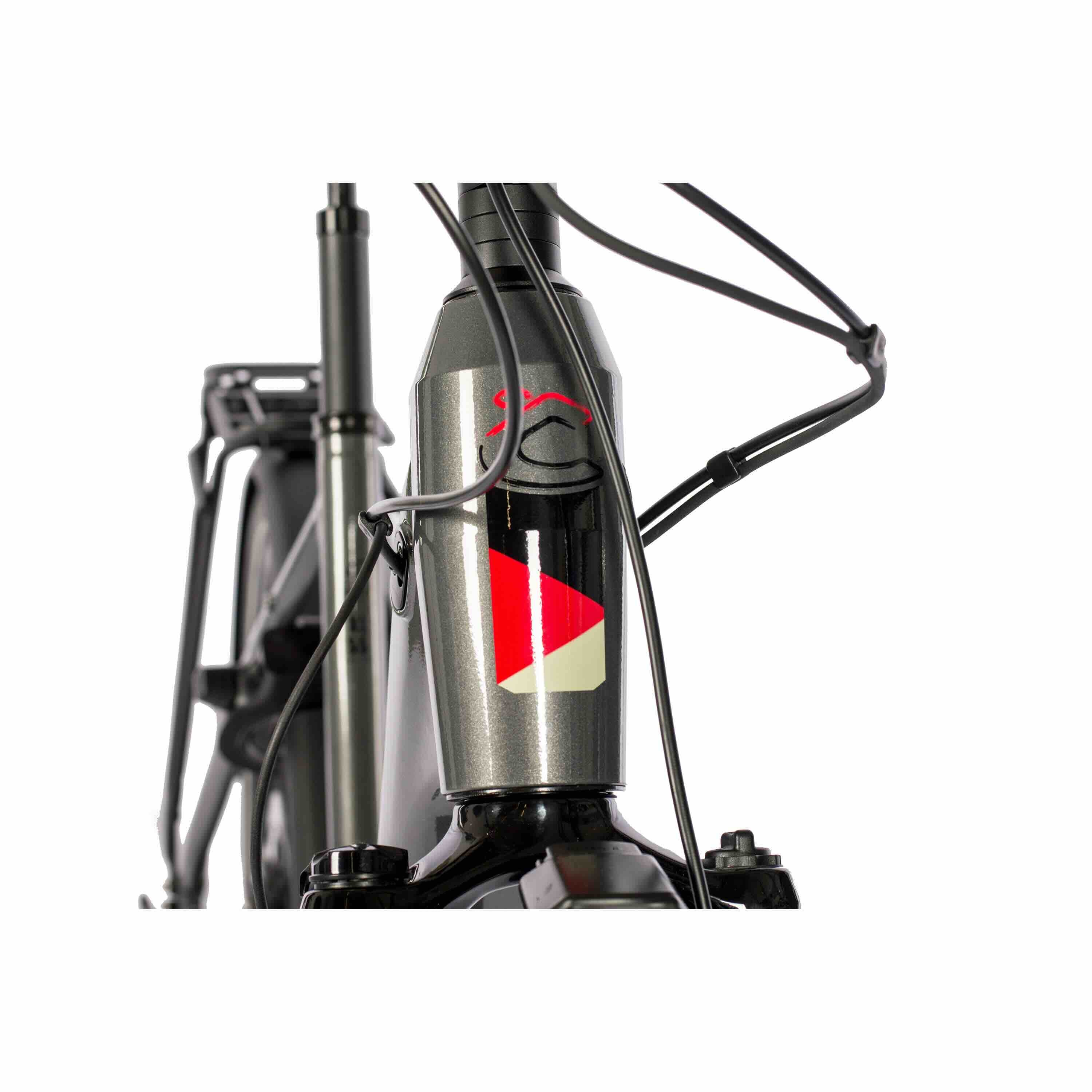

| RAHMEN | ALUMINIUM 6061, INTERNE KABELFÜHRUNG, 700C, AKKU SEMI INTEGRIERT |
| GABEL | RST BLAZE-ML-29 80 MM FEDERWEG |
| STEUERSATZ | AHEAD, SEMI-INTEGRIERT 1 1/8" |
| KURBEL | STRONGLIGHT 262617 BOSCH GEN3, 38T, 170MM |
| PEDALE | MARWI SP-827 |
| KETTE | SHIMANO KCNLG500130Q |
| KASSETTE | SHIMANO LINKGLIDE KASSETTE 10-FACH (11-43Z) |

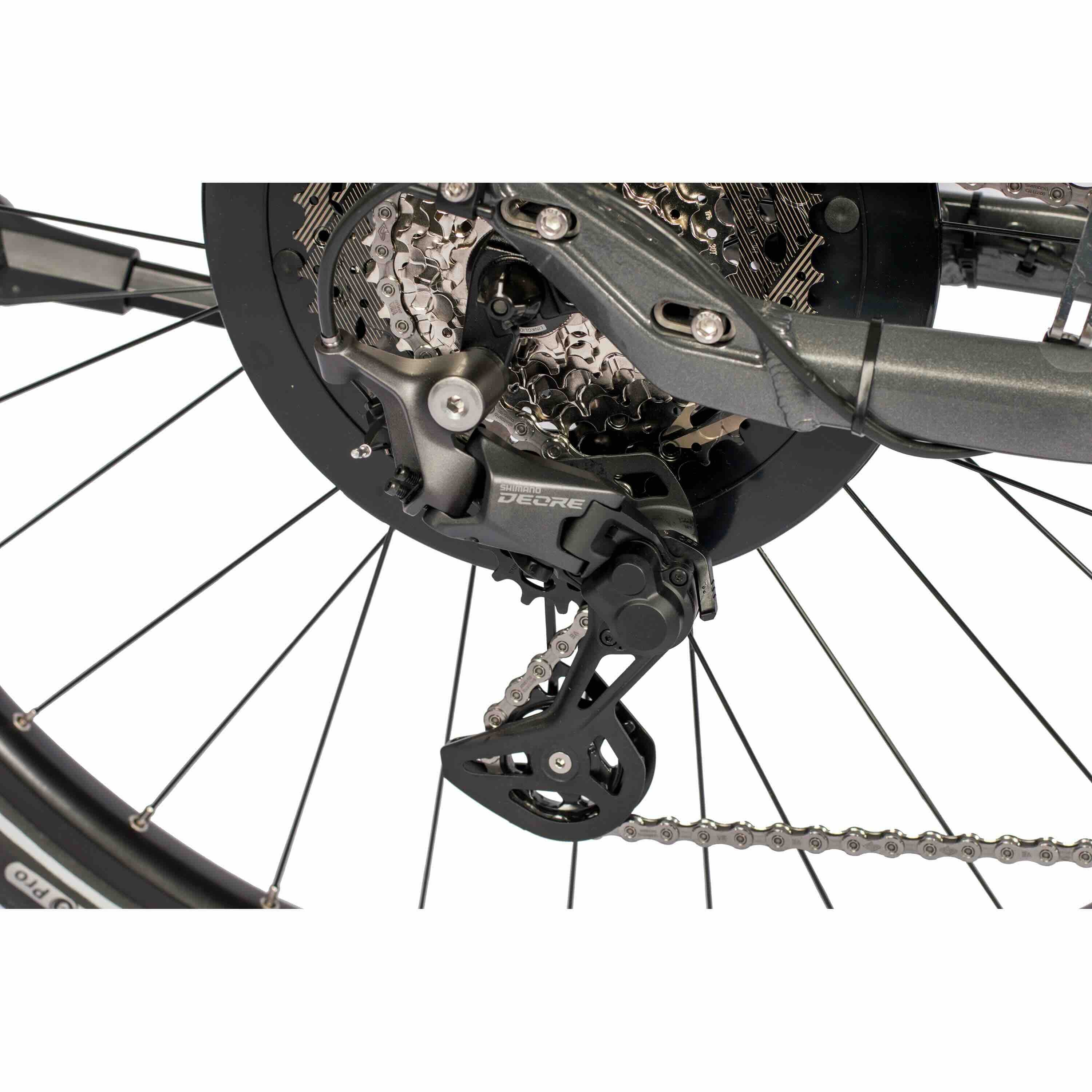

| SCHALTUNG | SHIMANO DEORE RD-M5130 GS, 10-FACH |

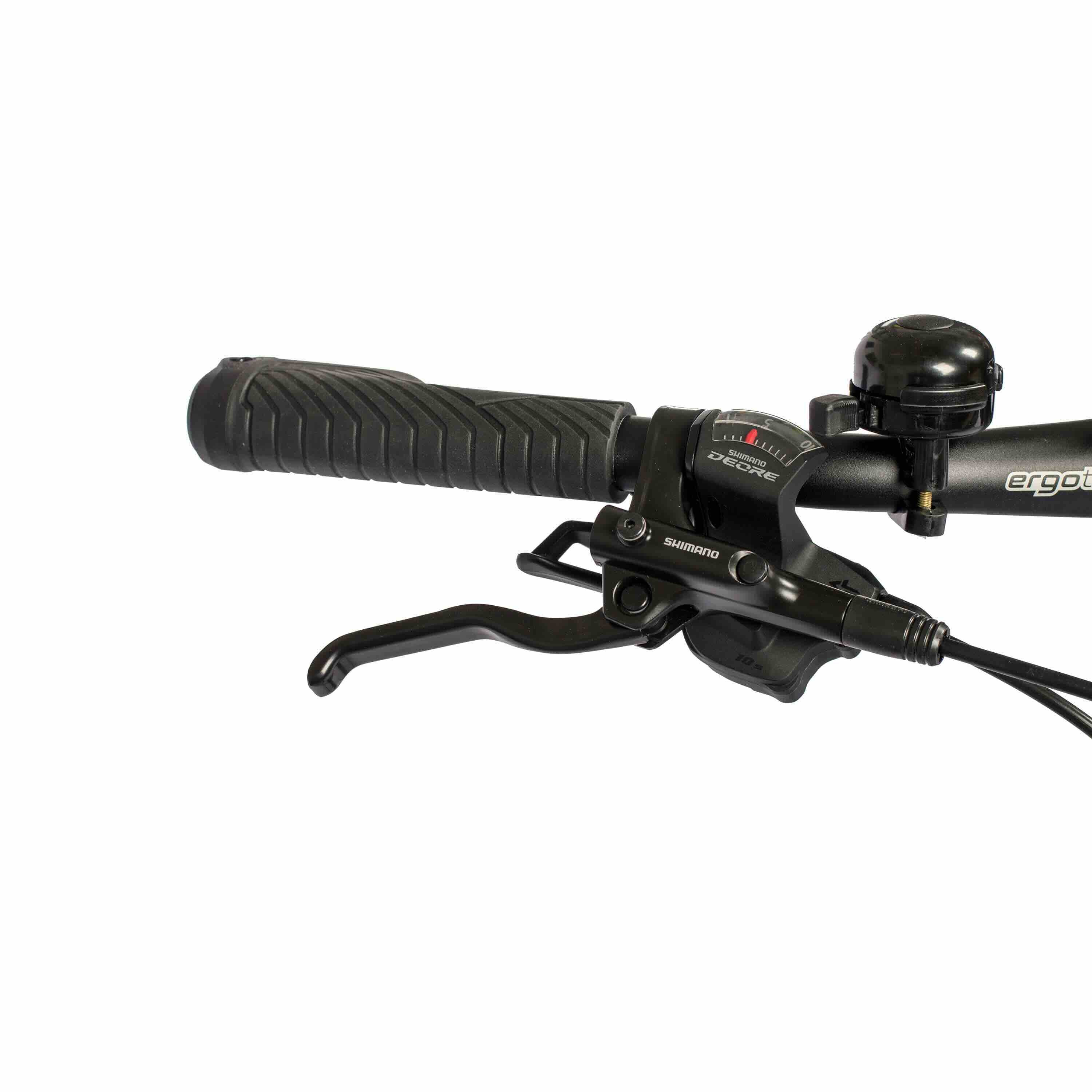

| SCHALTHEBEL | SHIMANO DEORE SL-M5130 RC |

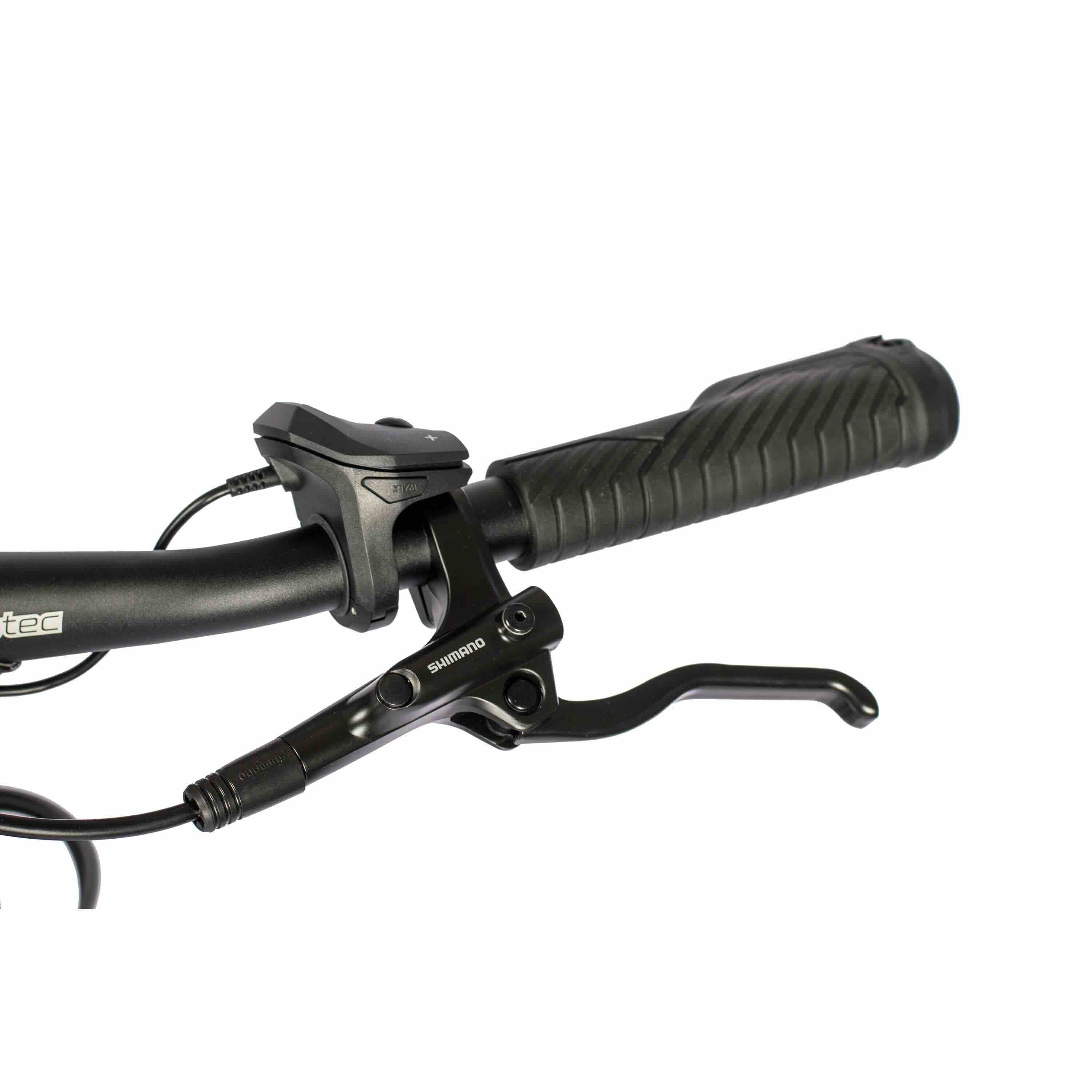

| BREMSHEBEL | SHIMANO BR-MT200, HYDRAULISCHE SCHEIBENBREMSE |
| BREMSE_VORNE | SHIMANO BR-MT200, HYDRAULISCHE SCHEIBENBREMSE MIT 180 MM BREMSSCHEIBE |
| BREMSE_HINTEN | SHIMANO BR-MT200, HYDRAULISCHE SCHEIBENBREMSE MIT 180 MM BREMSSCHEIBE |
| FELGEN | HOHLKAMMER X17 DISC, 32 LÖCHER |
| NABE_VORNE | SHIMANO HB-TX505, SCHNELLSPANNER, CENTERLOCK |
| REIFEN | CONTINENTAL CONTACT 50-622 SCHWARZ*REFLEX |

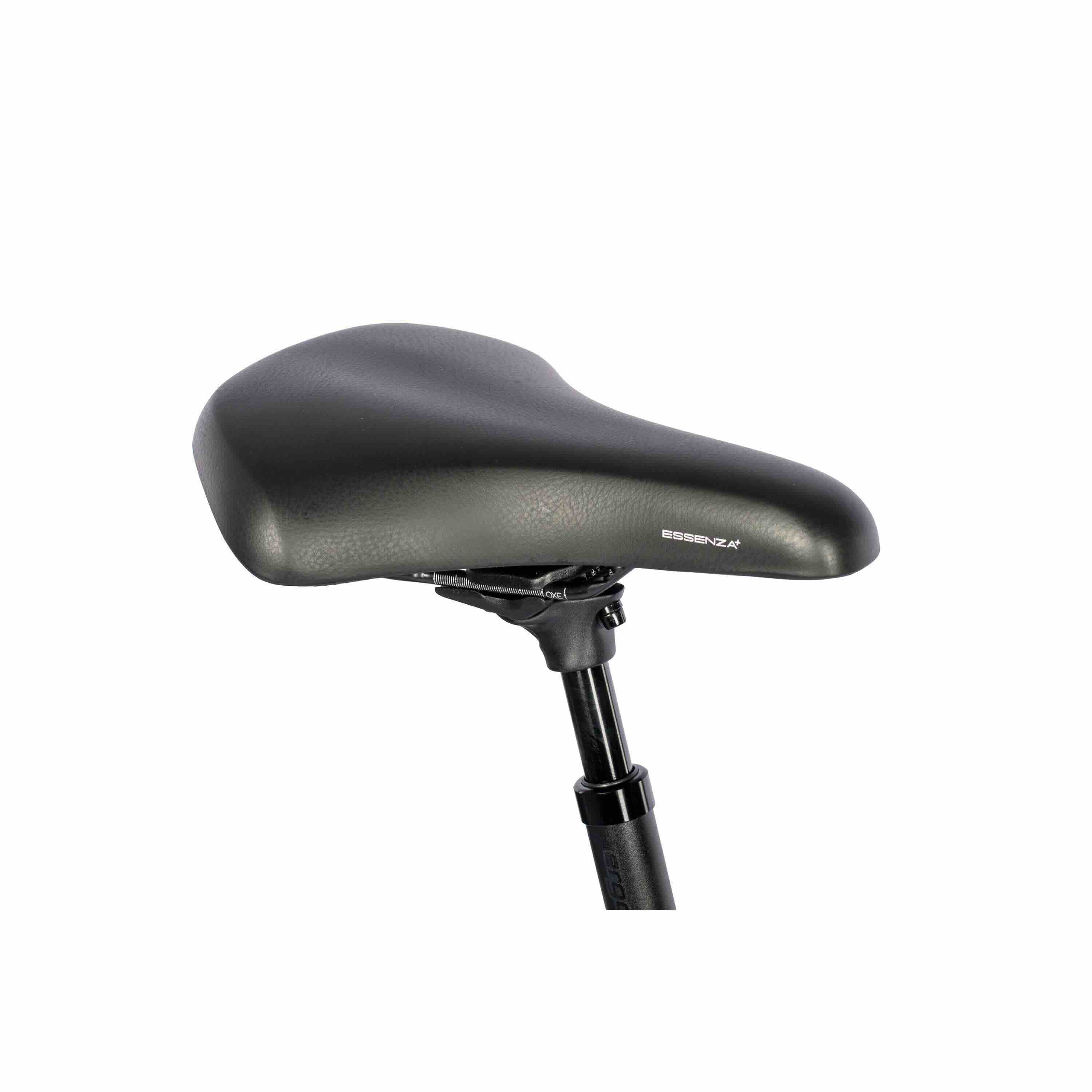

| SATTEL | SELLE ROYAL ESSENZA PLUS MODERATE |
| LENKERGRIFFE | ASIA VP-ER07 130/90 |
| VORBAU | HUMPERT SEPIA AHEAD 50 31,8Ø VERSTELLBAR 90/110MM, LEVEL 5 |

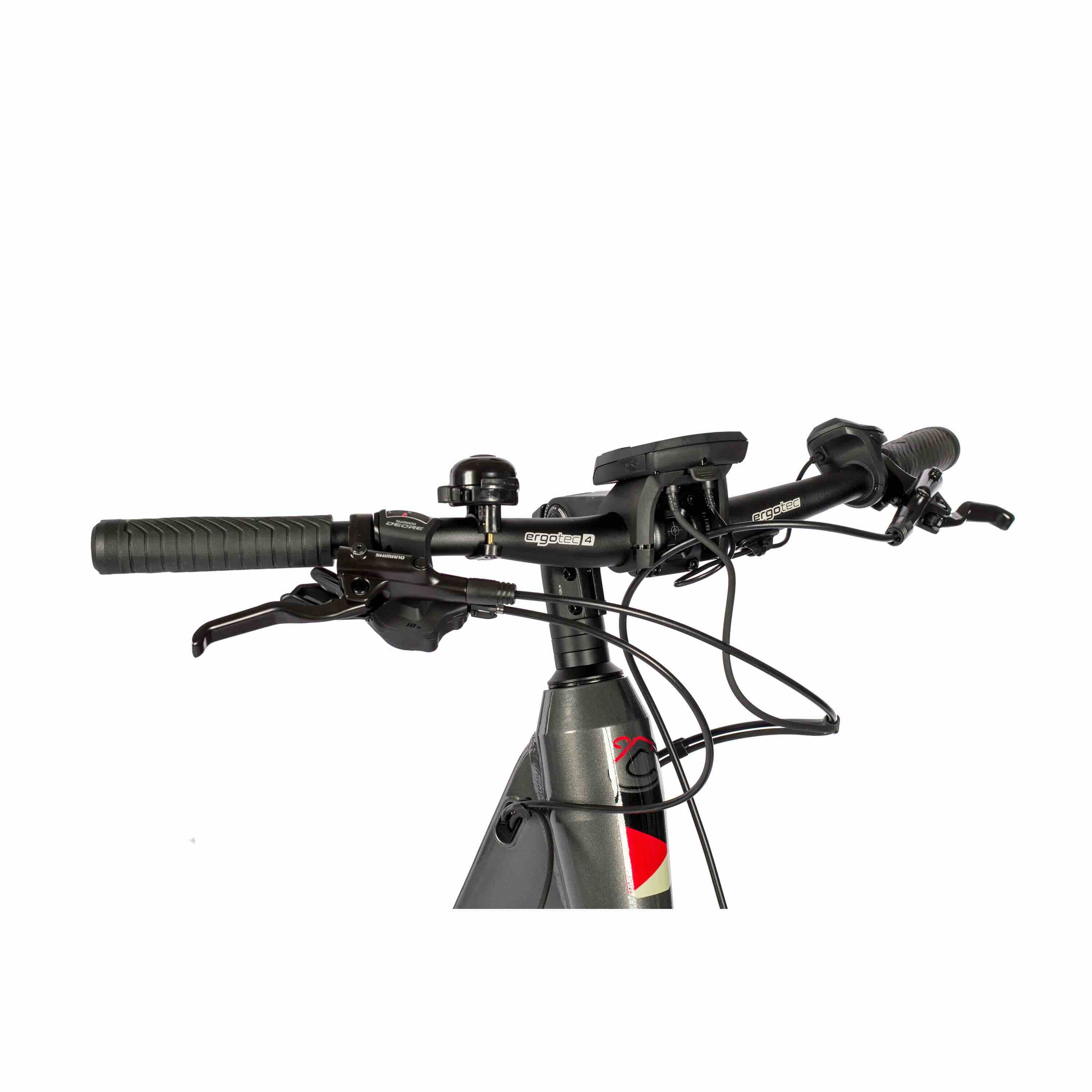

| LENKER | HUMPERT ERGOTEC TOWN 640MM Ø31,8MM, LEVEL 4 |
| SATTELSTÜTZE | HUMPERT ERGOTEC SP-10.0 31.6x350, 45/100, GEFEDERT |
| SATTELKLEMME | PROMAX MX27 35 MM |
| SCHUTZBLECHE | CURANA SET 65MM APOLLO |

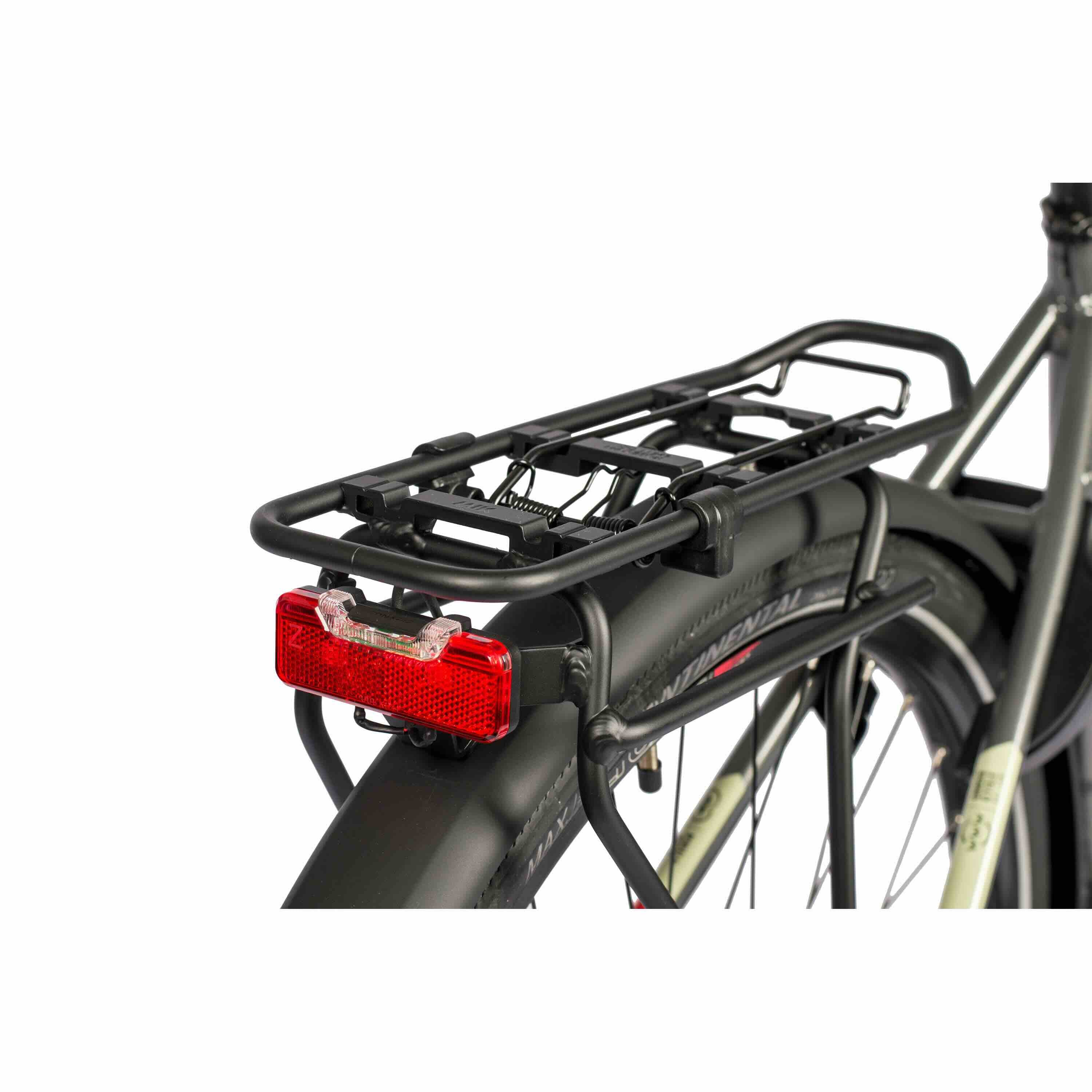

| GEPÄCKTRÄGER | RACKTIME 2 LEGS 00812-D MIT FEDERKLAPPE |

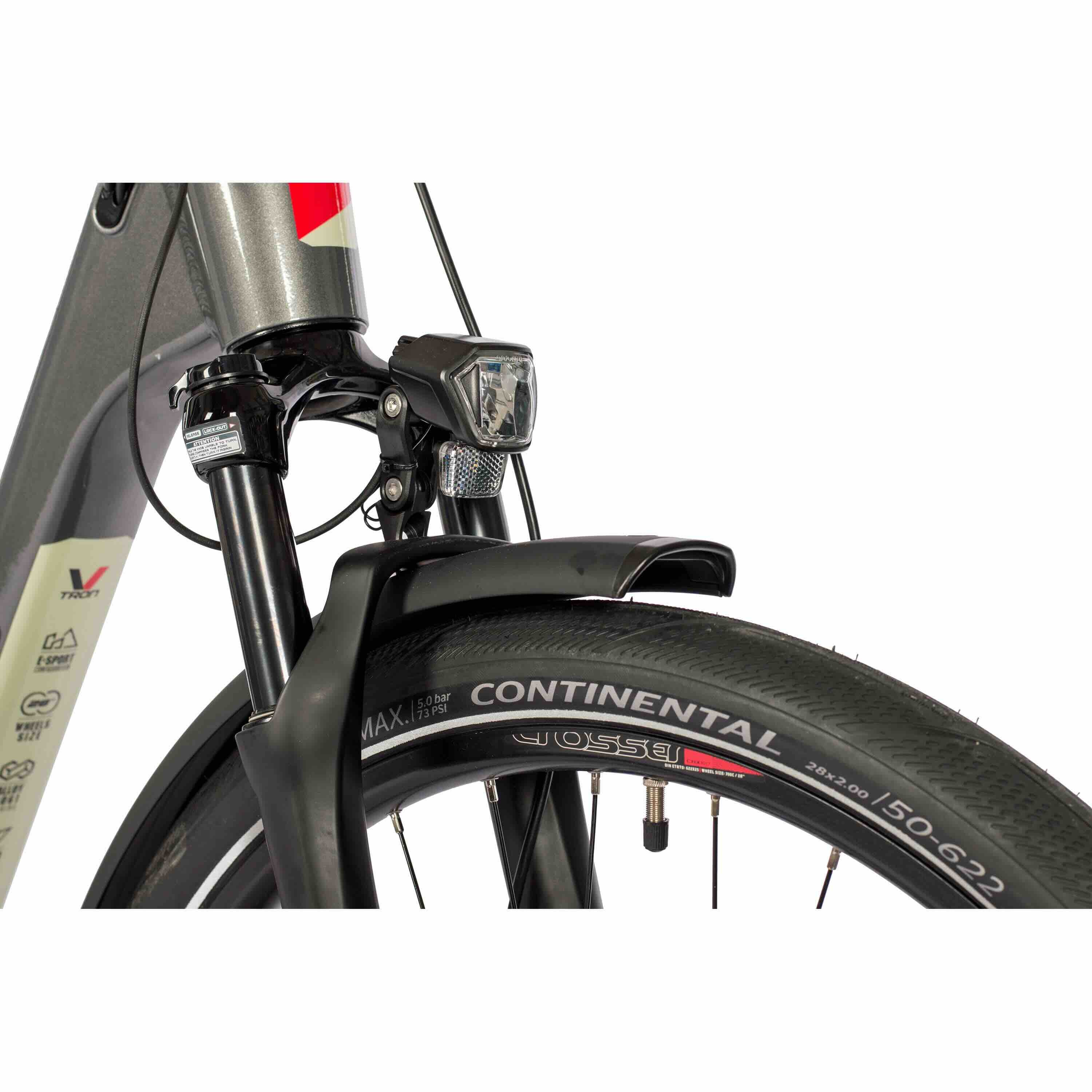

| FRONTLICHT | TRENTMANN DLUX 30 E |
| RÜCKLICHT | TRENTMANN CTL 335 E |
| STÄNDER | URSUS KING2 R78 40MM, KETTENSTREBENMONTAGE, LÄNGENVERSTELLBAR |
| GEWICHT | 28,4 KG |
| ZULÄSSIGES_GESAMTGEWICHT | 140 KG |
| FRAME SIZE: | 45 cm, | 50 cm, | 55 cm |
|---|---|---|---|
| | Rider height (cm) : | Frame 45 cm = 160–175, | Frame 50 cm = 170–185, | Frame 55 cm = 180–195 |
